SFR-APF-B Wall-Mounted Active Harmonic Filter Module

The Product Name:
SFR-APF-B Wall-Mounted Active Harmonic Filter Module
The Product Type:
AHF & SVG
Inquiry:
Corresponding field:
Metro Airport Data center Frequency converter







Product Name: SFR-APF-B Wall-Mounted Active Harmonic Filter Module

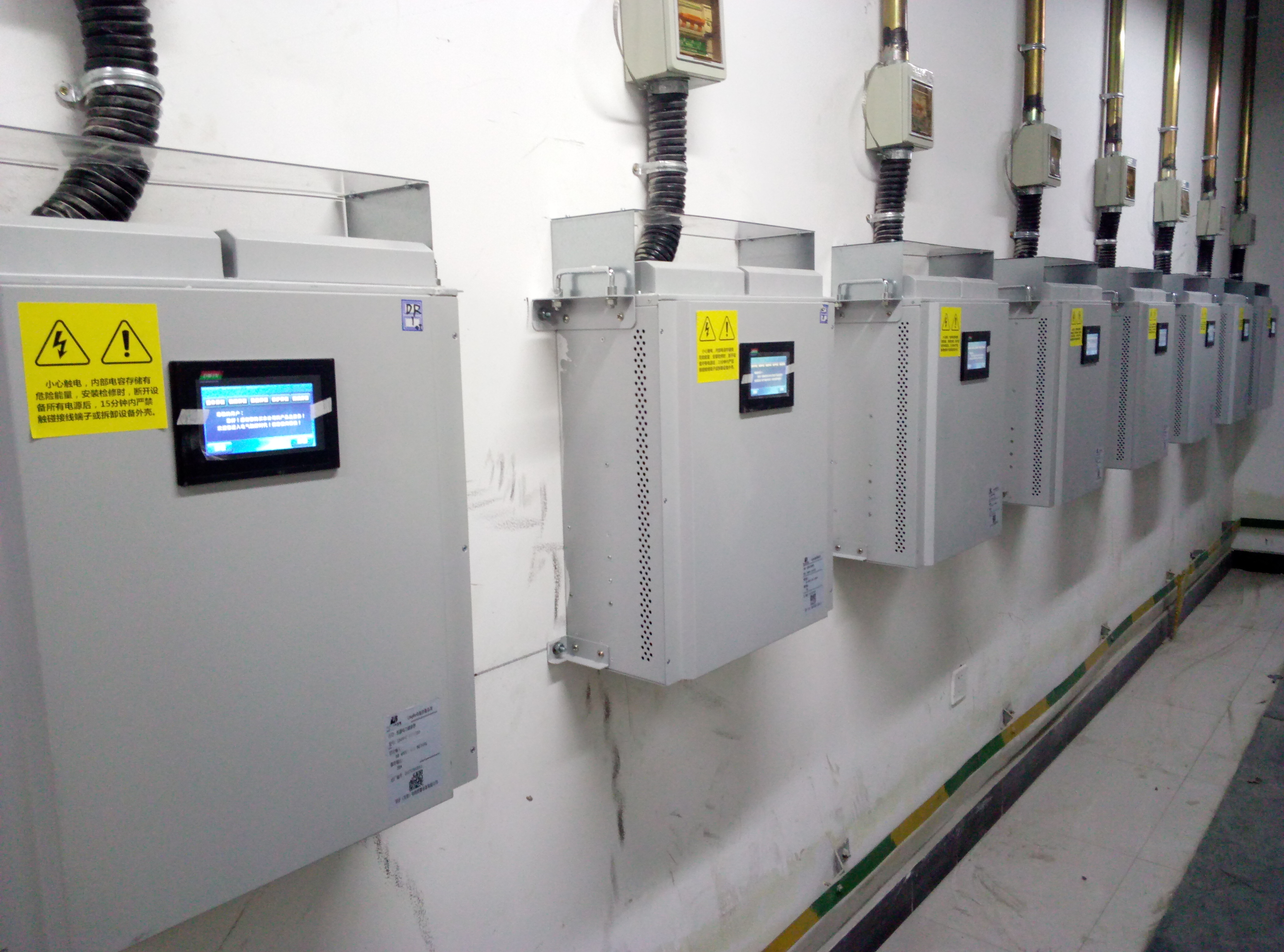

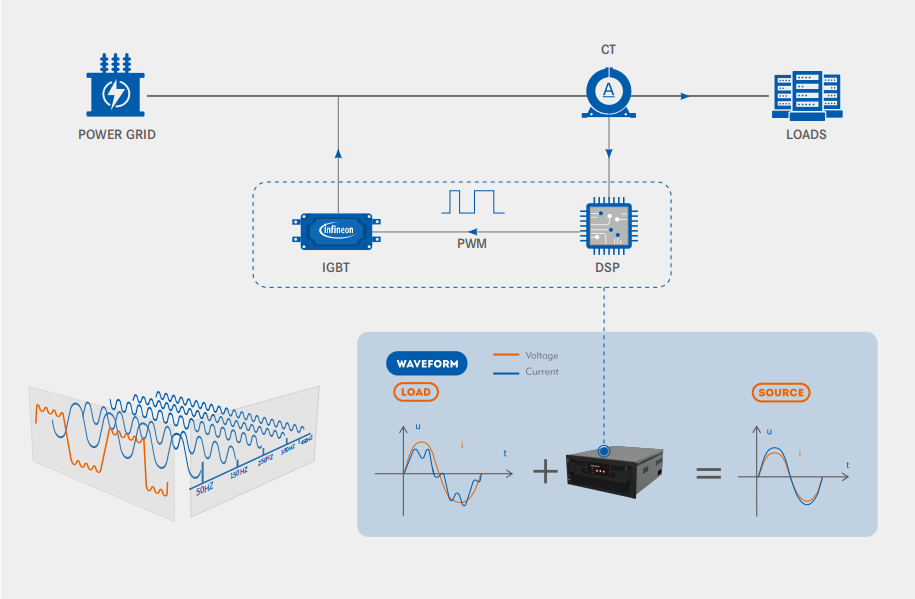

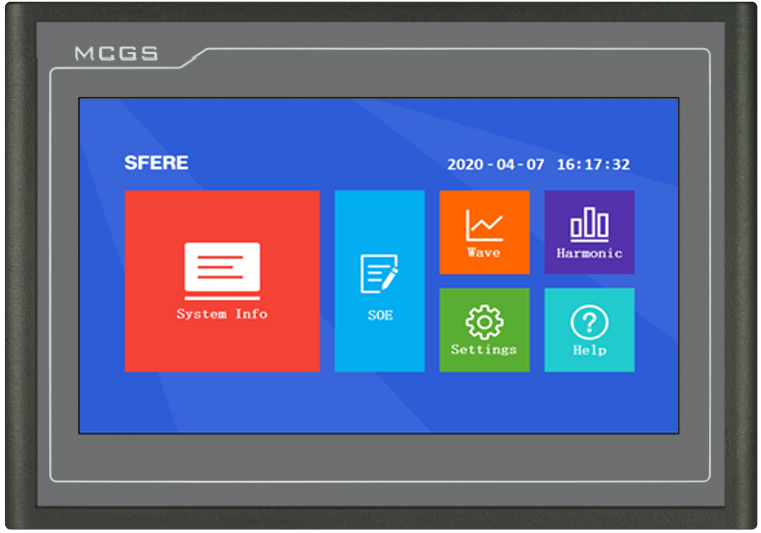

The SFR-APF series Active Harmonic Filter is a new type of power quality improvement products for the harmonic distortion in the circuit. With the advantage of the Fast Fourier Transform(FFT) and 3-Level technology, the SFR-APF Active Harmonic Filter has the 97% efficiency for harmonic filtering and dynamic reative power compensation. The Wall-mounted module is widely used at the senarios which request the independant harmonic filter right besides the load. A 4.3" LCD display fulfils the configuration and display functions for the module operation. The SFR-APF has complied with the IEEE-519 standard and CE certificates, adapt to the global market.
