LNF36 Digital Power Meter

The Product Name:
LNF36 Digital Power Meter
The Product Type:
LNF Panel Meter
Inquiry:
Corresponding field:
smart equipment intelligent building industrial and mining enterprise public facility


 Accuracy

 0.5%(default),0.2%
 Data update rate

 1s


 Input

 Current
 Rated value:AC 1A,5A
 Voltage
 Rated value:AC 100V,220V,400V etc
 Overload
 Continuous:2 times of rated value
 Frequency
 45~65Hz

 Safe Power Supply

 Range
 AC 80~270V 50/60Hz,DC 100~350V
Consumption
 ≤5VA
 Digital Input

 2 dry contact inputs,Isolation:2kVAC
 Relay Output

 2 relay outputs,contact rated at AC 5A/250V or DC 5A/30V,Isolation:2kVAC
 Analog Output

 dc 4~20mA,load ≤350Ω DC 0~5V,load≥20kΩ
 Communication Port

 RS485,Modbus-RTU,2-WIRE,up tp 9600bps
 Degree of Protection

 Front:IP64,Rear :IP20
 Operating Temperature

 -40℃~70℃(LED),-25℃~70℃(LCD)
 Storage Temperature

 -45℃~85℃(LED),-30℃~80℃(LCD)
 Relative Humidity

 ≤93%RH
 Insulation

 ≥2kVAC
 Altitude

 ≤2500m

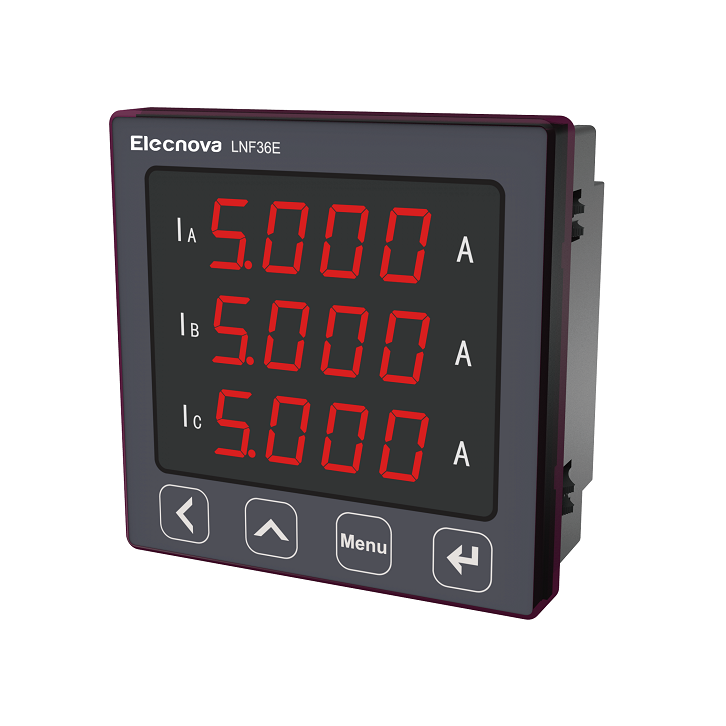

Product Name:LNF36 Digital Power Meter

LNF36 Digital Power Meter is a three-phase current meter with 96x96x34mm panel size.

It support real time measurement which will be widely used on smart equipment, intelligent building and so on.




LNF31LNF33LNF32LNF36LNF66
 Dimension(mm)
72x72x44.5
72x72x44.5
96x96x34
96x96x34
96x96x34
 Real-time measurement

single-phase current

three-phase currentsingle-phase currentthree-phase current
three-phase voltage
 LCD display
 RS485
Note:“■”Yes,“□”Optional
