LNF32 Digital Power Meter

The Product Name:
LNF32 Digital Power Meter
The Product Type:
LNF Panel Meter
Inquiry:
Corresponding field:
smart equipment intelligent building industrial and mining enterprise public facility

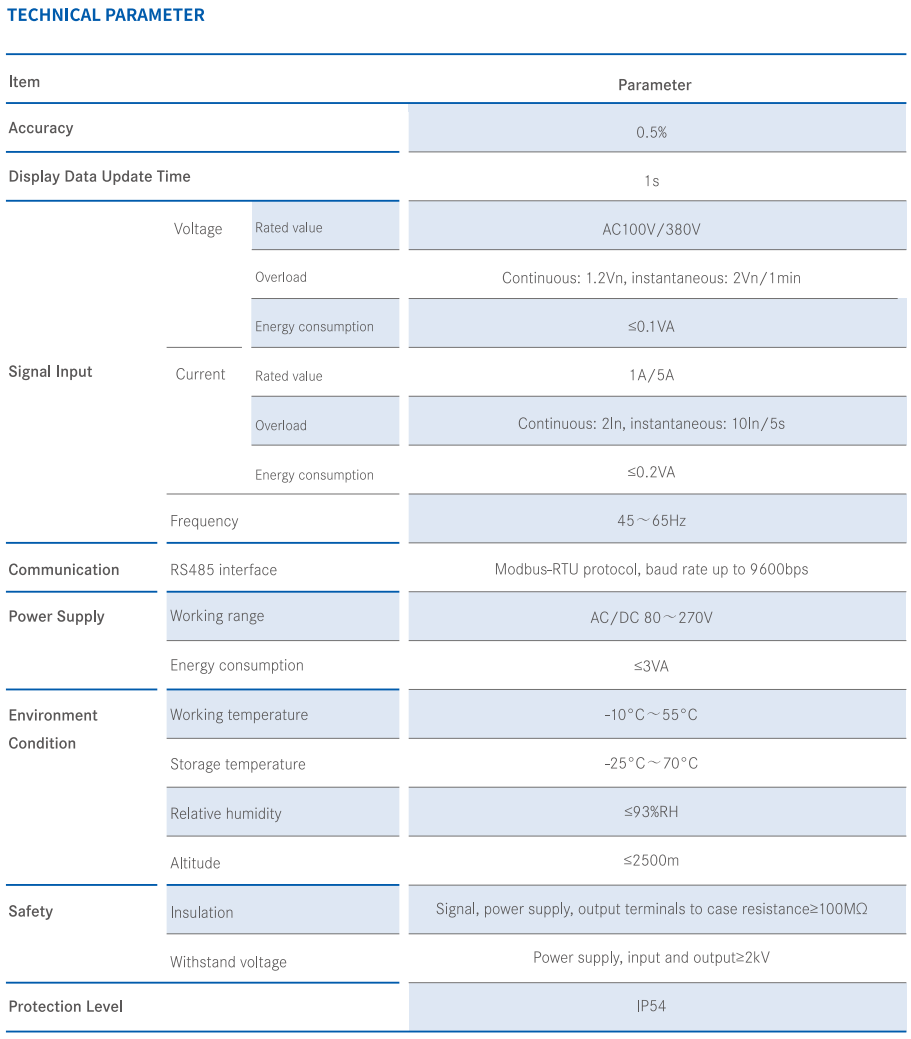

 Accuracy
 0.5%(default),0.2%
 Data update rate
 1s


 Input

 Current Rated value:AC 1A,5A
 Voltage Rated value:AC 100V,220V,400V etc
 Overload Continuous:2 times of rated value
 Frequency 45~65Hz

 Safe Power Supply

 Range AC 80~270V 50/60Hz,DC 100~350V
Consumption ≤5VA
 Digital Input
 2 dry contact inputs,Isolation:2kVAC
 Relay Output
 2 relay outputs,contact rated at AC 5A/250V or DC 5A/30V,Isolation:2kVAC
 Analog Output
 dc 4~20mA,load ≤350Ω DC 0~5V,load≥20kΩ
 Communication Port
 RS485,Modbus-RTU,2-WIRE,up tp 9600bps
 Degree of Protection
 Front:IP64,Rear :IP20
 Operating Temperature
 -40℃~70℃(LED),-25℃~70℃(LCD)
 Storage Temperature
 -45℃~85℃(LED),-30℃~80℃(LCD)
 Relative Humidity
 ≤93%RH
 Insulation
 ≥2kVAC
 Altitude
 ≤2500m


Product Name:LNF32 Digital Power Meter

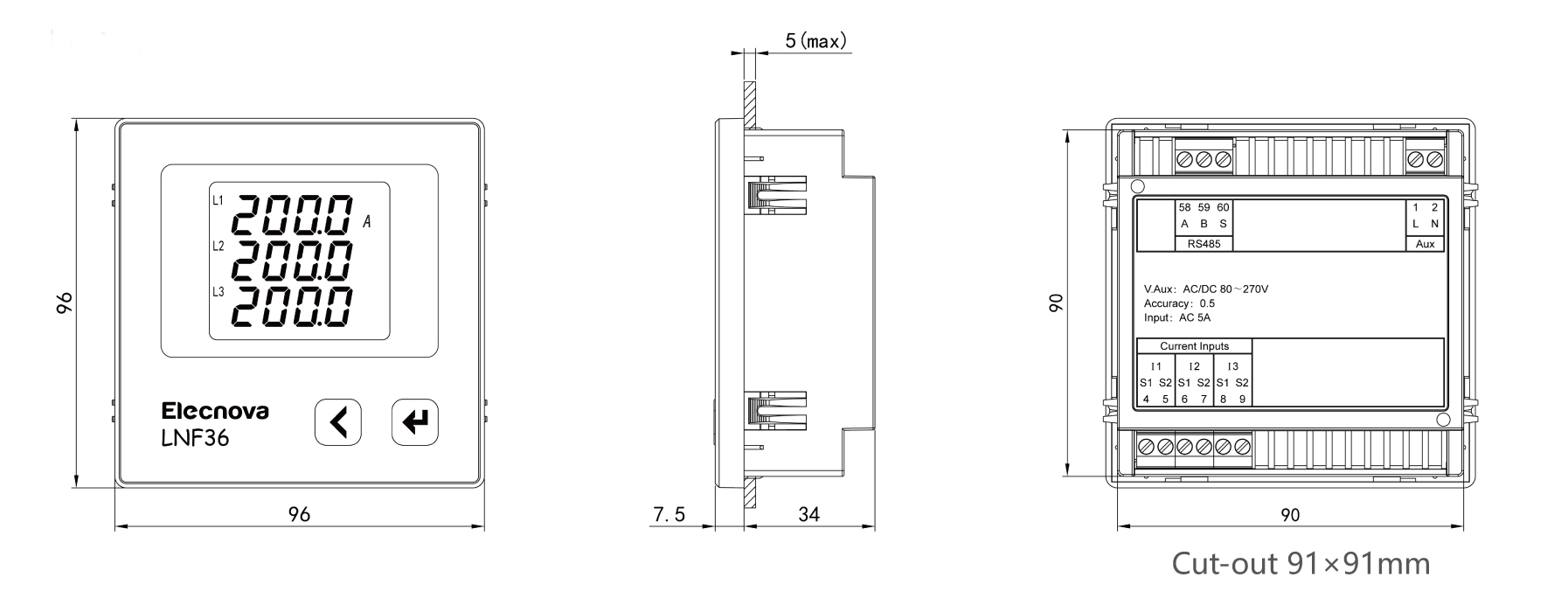

LNF32 digital power meter is a single phase current meter with 96x96x34 panel size, its cut-out size is 91x91mm.

This series of digital display AC electrical measurement meters are applied widely in data center and smart equipments.

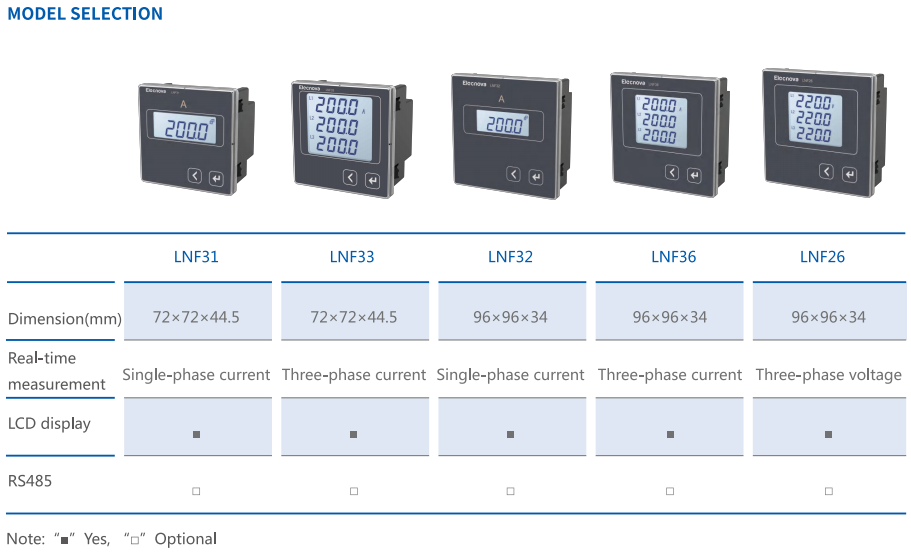

LNF31
LNF33
LNF32
LNF36
LNF66
 Dimension(mm)
72x72x44.5
72x72x44.5
96x96x34
96x96x34
96x96x34
 Real-time measurement

single-phase current

three-phase currentsingle-phase currentthree-phase current
three-phase voltage
 LCD display
 RS485
Note:“■”Yes,“□”Optional
